Concrete Wet Cast Paving Artificial Stone Making Machine Quantitative Feeding
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Normally carton box or following customer's requirements |
| Delivery Time: | 50Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Name: | Wet Cast Concrete Machine | Voltage: | 220V |
|---|---|---|---|
| Key Selling Points: | High Productivity | Capacity: | 800-1000m2 |
| Brick Type: | Concrete Dosing System | Weight: | 2000KG |
| Highlight: | Concrete Wet Cast Artificial Stone Machine,Paving Artificial Stone Making Machine,Quantitative Feeding Artificial Stone Production Line |
||
Product Description

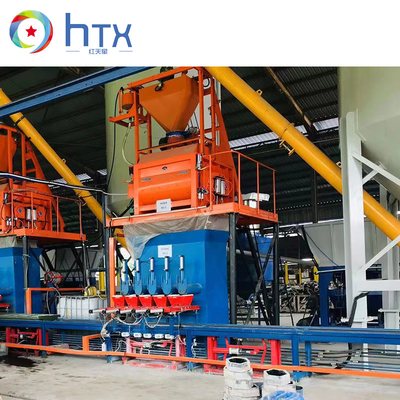

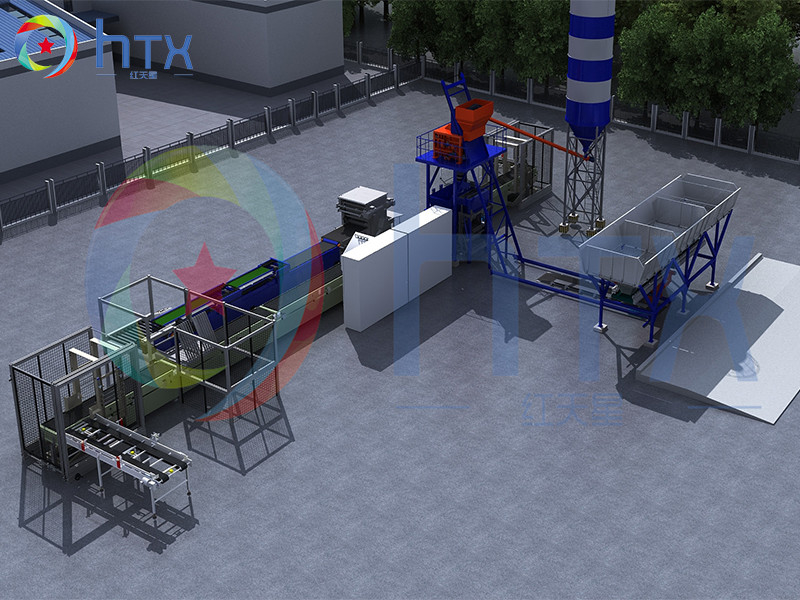

Concrete Wetcast Paving Artificial Stone Making Line Artificial Stone Feeding Machine
Product Description
The cultural stone production line relates to the technical field of artificial stone production, and discloses an artificial cultural stone mold turning device, comprising a first conveying platform and a second conveying platform arranged in parallel, and a turning frame is arranged between the first conveying platform and the second conveying platform, A clamping mechanism is arranged in the overturning frame, the end of the overturning frame is provided with a holding mechanism corresponding to the clamping mechanism, and the second conveying platform includes a material receiving and conveying mechanism corresponding to the overturning frame and the clamping mechanism.
Features: 1. This equipment is an upgraded version of the above production line; it also has their functions;
2. The feeding method is adjusted from horizontal blanking to bottom-up feeding and feeding, the feeding amount is more stable, and there will be no leakage or uneven material;
3. A weighing system is added, and there is a weighing device under the feeding port, which can weigh concrete within 5-25 kg, making the feeding amount more accurate;
4. The digital display PLC control system is added, which is easy to operate and more intelligent;
5. Configuration: quantitative feeding equipment + 500L mandatory stirring + PLC digital power distribution cabinet.
Applications
Concrete casting wet doser machine Product Details :More efficient production, can achieve 800M2 Per day (8hrs),Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.
Specifications
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Wet Cast Machinery | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Wet Cast Machinery | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Feature advantage
