220V Wet Cast Production Line Exterior Natural Culture Stone Making Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Normally carton box or following customer's requirements |
| Delivery Time: | 50Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Name: | Wet Cast Concrete Machinery | Voltage: | 220V |
|---|---|---|---|
| Key Selling Points: | High Productivity | Capacity: | 800-1000m2 |
| Brick Type: | Concrete Dosing System | Weight: | 2000KG |
| Highlight: | Exterior Natural Culture Stone Making Machine,Wet Cast Stone Making Machine,220V Wet Cast Production Line |
||
Product Description

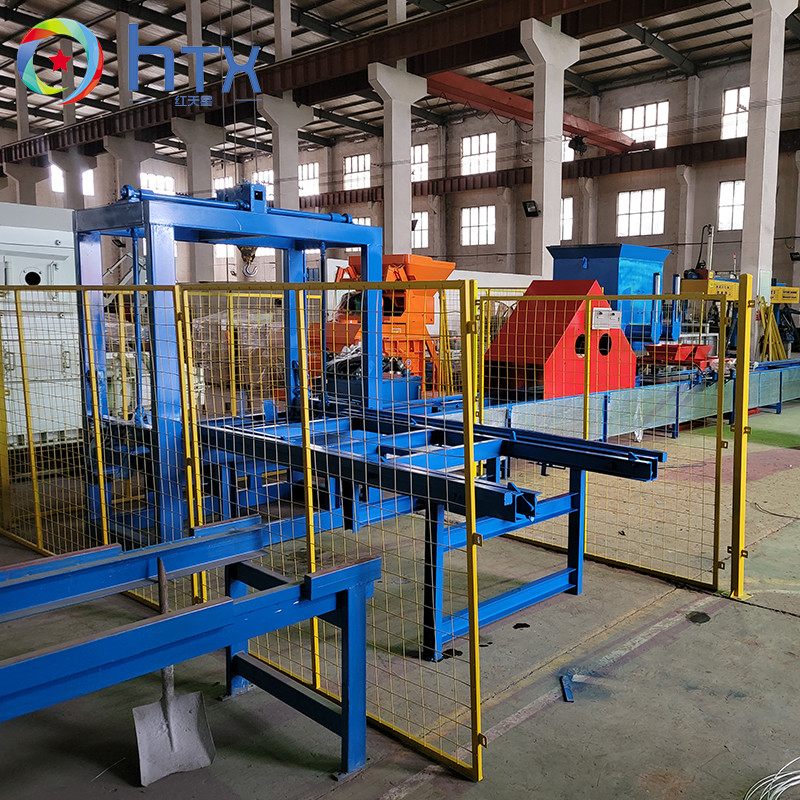

High Efficiency Wet Cast Production Line Exterior Natural Culture Stone Making Machine
Product Description
Wet Cast Machinery uses single-silo ingredients. Your cement can be directly transferred to the mold through the silo, and conveyed through the transmission belt to improve production efficiency. Firstly, wet casting doser machine includes, cement silo, batching machine, auto concrete mixer, auto unloading machine, auto spray machine, auto dosing machine, auto stacking machine, pallet transfer machine, empty pallet belt conveyor, full pallet belt conveyor, air compressor, auto screen controller, pallet turning machine, demolding machine, auto packing machine and so on.According to the requirements of the customer's site, the length of precast concrete production lines can be customized, and the output can be controlled. At least 800 square meters can be produced per day, saving labor. The complete production line only needs 5-6 workers, and only needs to be responsible for controlling the cabinet of the machine, simple and easy.
Specifications
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Wet Cast Machinery | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Applications
Auto Wet Conrete Dosing System Production line advantages:
1.More efficient production, can achieve 800M2 Per day(8hrs)
2.Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.
3.Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.
4. The auto spray painting machine, has function for mold oil sparying, stroll color painting and full color painting, also it can be turned on/off separately.
Feature advantage
Henan HTX Group Co Ltd, specialized in designing, developing, producing and marketing of artificial stone molds, paving tile molds, concrete stamp molds, pillar molds, roman column molds, and relative machines and production lines.we have more than 200 mould designs and sizes. The updated silicone material make the stone mold more durable and have good characteristic. After use again and again,our updated silicone mould still have a clear & natural texture and without any deformation.
