High Efficiency Low Cost Concrete Fence Panel Production Line Wet Cast Equipment Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | POSI CERTIFICATE |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Carton |
| Delivery Time: | 90Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Wet Cast Machinery | Raw Material: | Conrete |
|---|---|---|---|
| Auto Degree: | Fully Automatic | Feature: | Easy To Operate |
| Capacity: | 1200-1500m2 | Key Selling Points: | High Productivity |
| Highlight: | Hand Made Soil Plastic Paver Mould,Concrete Roof Plastic Paver Mould,Interlocking Tile Plastic Molds |
||
Product Description

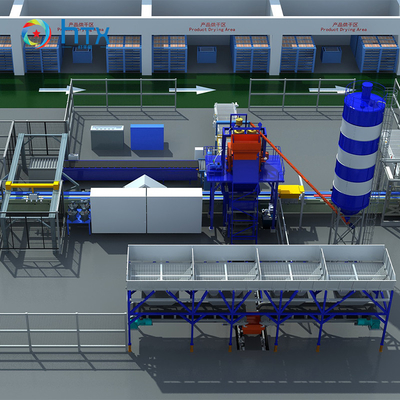

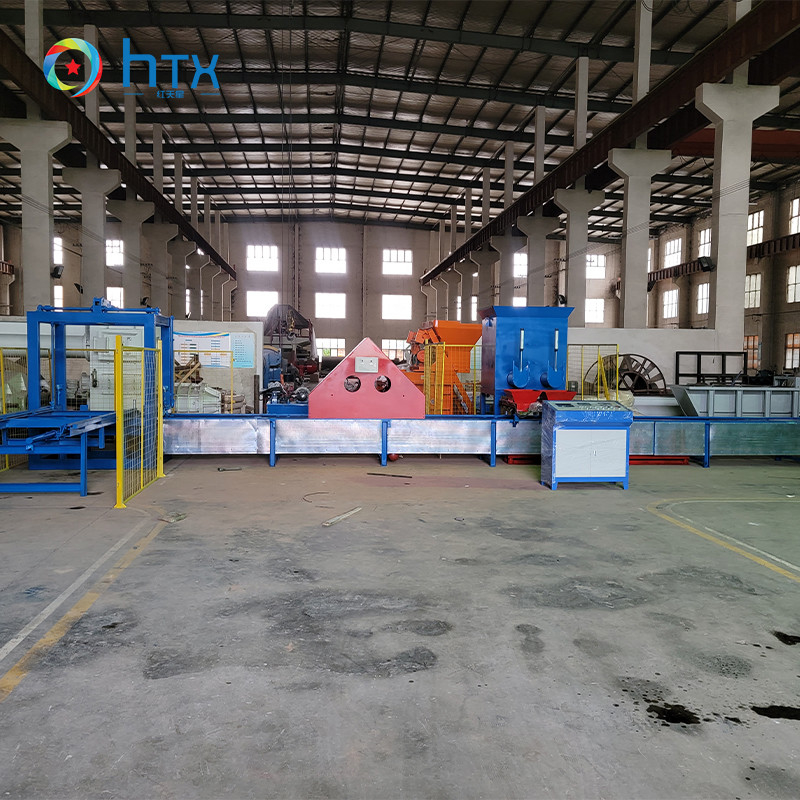

Concrete fence panel production line is a manufacturing system designed to produce concrete panels used for fencing purposes. It typically involves a series of processes and machinery that work together to produce consistent and high-quality concrete fence panels in an efficient manner.The process starts with the mixing of concrete ingredients, including cement, aggregates (such as sand and gravel), water, and sometimes additives. This is usually done in a concrete batching plant or a mixer truck.The moulds used for casting the concrete panels are prepared. These moulds are often made of steel or other durable materials and are designed to create the desired shape and size of the fence panels.The mixed concrete is poured into the prepared moulds. Vibrators may be used to ensure proper compaction and eliminate air pockets, which can affect the strength and appearance of the panels.Once the concrete has reached the desired strength, the panels are removed from the moulds. This can be done manually or with the help of demoulding equipment, depending on the size and weight of the panels.The demoulded panels may undergo additional surface finishing processes, such as sanding, grinding, or polishing, to achieve the desired texture and appearance. Surface treatments, such as applying coatings or sealants, may also be done at this stage. Once the concrete fence panels have been inspected and approved, they are usually packaged and prepared for transportation or storage. This may involve stacking, wrapping, or palletizing the panels to protect them during handling and transportation.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
- On-site technical support and maintenance
- Expert assistance with installation and setup
- Remote and telephone troubleshooting and support
- Periodic maintenance and inspection
- Repair and replacement parts
- Technical training and user manuals
- Upgrades and software updates
