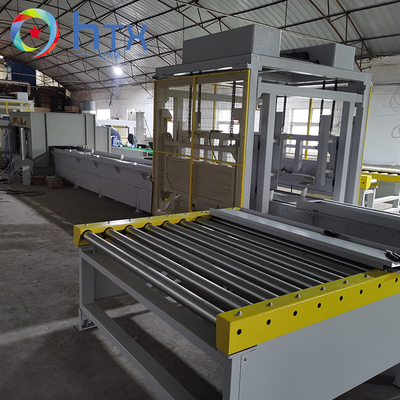

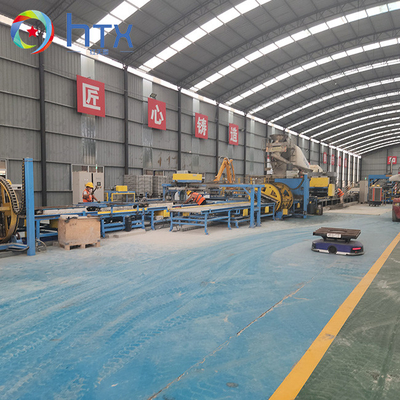

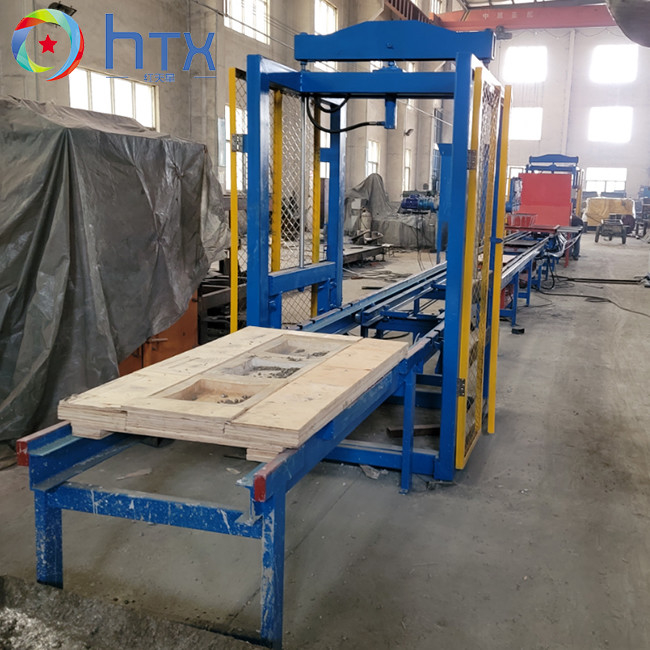

Fully Automatic Wet Cast Concrete Doser Machinery Artificial Stone Production Line With Demoulding
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | POSI CERTIFICATE |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Carton |
| Delivery Time: | 30Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Wet Cast Machinery | Key Selling Points: | High Productivity |
|---|---|---|---|
| Stone Form: | Wall Brick | Feature: | Automatic |
| Capacity: | 1200-1500m2 | Usage: | Construction |
| Highlight: | Concrete Interlocking Paving Plastic Mould,waterproof Plastic Paver Mould,Clay Roof Tile Plastic Mould |
||
Product Description
Fully Automatic Wet Cast Concrete Doser Machinery Artificial Stone Production Line With Demoulding
Wet cast concrete doser machinery, also known as wet cast concrete batching plants or wet cast concrete production systems, are specialized machines used for the automated production of wet cast concrete products. These machines are designed to accurately measure and proportion the ingredients required for wet cast concrete, ensuring consistent quality and efficient production. Here is a general overview of how wet cast concrete doser machinery works:The machine typically has a batching system that accurately measures and combines the raw materials required for wet cast concrete. This includes cement, aggregates (such as sand, gravel, or crushed stone), water, and additives. The raw materials may be stored in separate compartments or silos, and they are automatically fed into the dosing system as needed.The dosing system of the machine precisely measures and dispenses the correct amounts of each raw material into a mixing chamber or mixer. The dosing process ensures that the ingredients are accurately proportioned according to the desired mix design.Once the raw materials are dosed into the mixing chamber or mixer, they are thoroughly mixed to achieve a homogenous wet concrete mixture. The mixing process can be achieved through various mechanisms, such as rotating blades, planetary mixers, or twin-shaft mixers. The mixing time is carefully controlled to ensure proper blending of the ingredients.After the concrete mixture is properly mixed, it is transferred to a mold filling system. The mold filling system can consist of a conveyor belt, a hopper, or other mechanisms that deliver the wet concrete mixture to the molds. The molds are typically placed on a production line or a rotating table to facilitate continuous production.Once the wet cast concrete products have cured sufficiently, they are demolded from the molds. Care should be taken during demolding to avoid damaging the products. After demolding, any imperfections or rough edges can be smoothed out, and additional finishing processes, such as surface treatments or coatings, can be applied as needed.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
- On-site technical support and maintenance
- Expert assistance with installation and setup
- Remote and telephone troubleshooting and support
- Periodic maintenance and inspection
- Repair and replacement parts
- Technical training and user manuals
- Upgrades and software updates
