Wet Cast Doser Concrete Dosing Machine Artificial Stone Production Line
Product Details:
| Place of Origin: | Henan,China |
| Brand Name: | HTX |
| Certification: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Normally carton box or following customer's requirements for Foam CLC Lightweighted Concrete Cement Injection For House Partition And Heat Preservation |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500Sets/Month |
|
Detail Information |
|||
| Product Name: | Feeder Artificial Stone Making Machine | Color: | Black |
|---|---|---|---|
| Material: | Steel | Type: | Artificial Stone Product Line |
| Application: | Buliding Construction | ||
| Highlight: | Artificial Stone Wet Cast Dosing Machine,Stone Wet Cast Concrete Dosing Machine |
||
Product Description

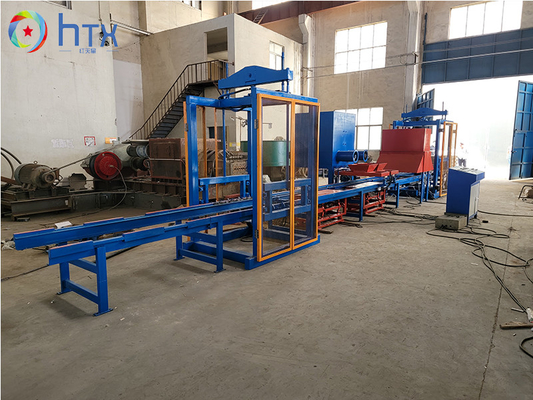

Wet Cast Doser Concrete Dosing Machine Artificial Stone Production Line
Product Description
Automatic culture stone production line, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc .The cultural stone production line relates to the technical field of artificial stone production, and discloses an artificial cultural stone mold turning device, comprising a first conveying platform and a second conveying platform arranged in parallel, and a turning frame is arranged between the first conveying platform and the second conveying platform, A clamping mechanism is arranged in the overturning frame, the end of the overturning frame is provided with a holding mechanism corresponding to the clamping mechanism, and the second conveying platform includes a material receiving and conveying mechanism corresponding to the overturning frame and the clamping mechanism.
Turning over the pallet with molds by 180C,place the molds and catch back the empty pallet to the main hydraulic conveyor.
· Hydraulic(turning) +Pneumatic (pallet&molds control)
· Pallet turning speed is adjustable(frequency motor controller)
· With transport roller conveyor for shipping the molds to the demolding machine
Turning over the pallet with molds by 180C,place the molds and catch back the empty pallet to the main hydraulic conveyor.
· Hydraulic(turning) +Pneumatic (pallet&molds control)
· Pallet turning speed is adjustable(frequency motor controller)
· With transport roller conveyor for shipping the molds to the demolding machine

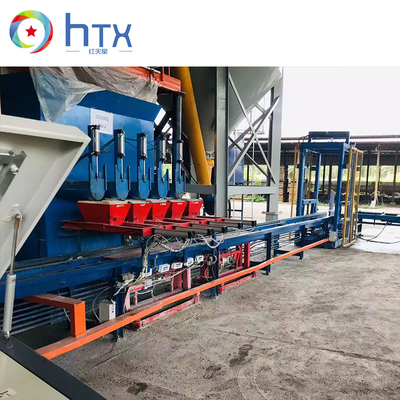

This equipment is an upgraded version of the above blue equipment.
1. The feeding method is adjusted from horizontal unloading to bottom-up pumping and feeding. The feeding amount is more stable, and there will be no leakage or uneven feeding.
2. A weighing system is added, and there is a weighing device under the discharge opening, which can weigh 5-25kg of concrete, making the discharge volume more accurate.

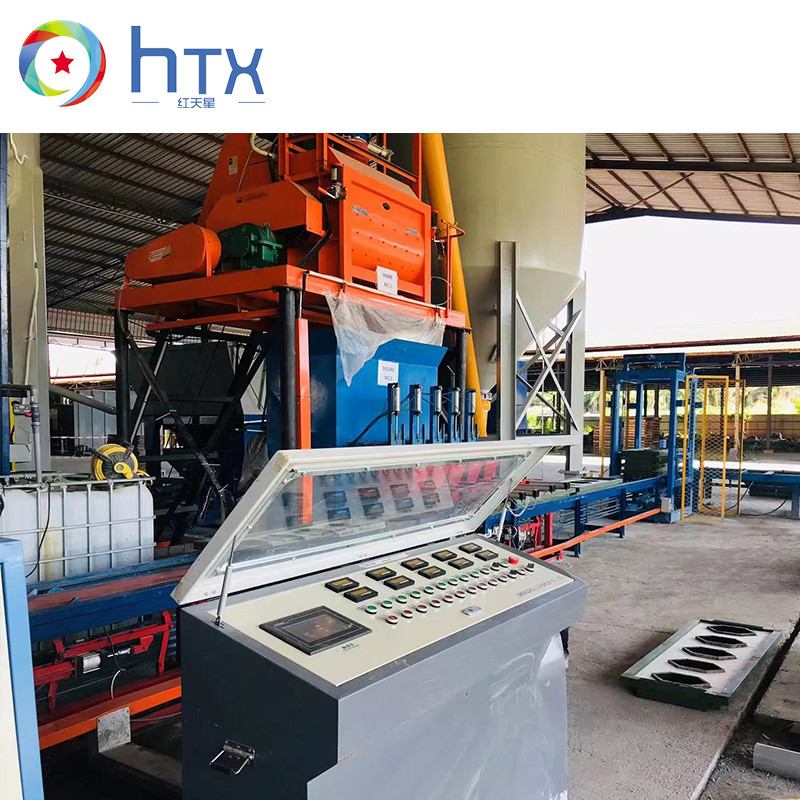

3. A digital display PLC control system is added, which is easy to operate and more intelligent.
1. The feeding method is adjusted from horizontal unloading to bottom-up pumping and feeding. The feeding amount is more stable, and there will be no leakage or uneven feeding.
2. A weighing system is added, and there is a weighing device under the discharge opening, which can weigh 5-25kg of concrete, making the discharge volume more accurate.
3. A digital display PLC control system is added, which is easy to operate and more intelligent.
Paremeter
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
|---|---|---|---|---|---|---|
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1200 | 2000 |
| Artificial stone production line | HTX-P-01A | Full Auto,timing feeding and vibration, weighing system; | 12000*1000*2000 | 9.1 | 800-1000 | 2000 |
Related Products
FAQ
1) Q: Are you a factory or a trading company?
A: We are a foreign trade company integrating factories and trade. We have our own factories and overseas warehouses.
2) Q: What are the payment terms?
A: L/C, T/T, Western Union,RMB Cash.
3) Q: Do you offer formula solutions?
A: Yes,we can offer professional making solutions.You can make the color suitable for the floor tiles according to the proportion, and the color and gloss of the made tiles are better.
Want to Know more details about this product
