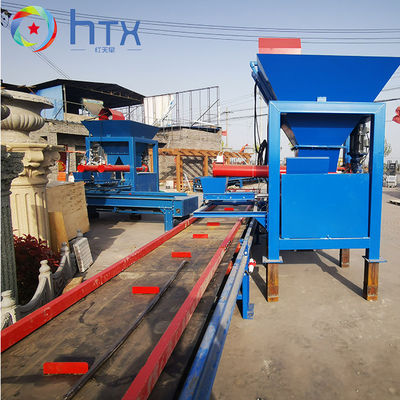

High Efficiency Faux Stone Siding Panels Making Machine Feeder Concrete Dosing System
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Certification: | POSI CERTIFICATE |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 15000-80000/USD |
| Packaging Details: | Carton |
| Delivery Time: | 30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Faux Stone Siding Panels Making Machine | Style: | Full Auto |
|---|---|---|---|
| Stone Form: | Wall Brick | Application: | Interior And Exterior |
| Capacity: | 1000-1500m2 | Weight: | 2000KG |
| Highlight: | Faux Stone Siding Panels Making Machine,Concrete Dosing Feeder Fence Panel Machine,Faux Stone Fence Panel Machine |
||
Product Description
Faux stone siding panels making machine is a specialized piece of equipment designed to manufacture artificial or faux stone siding panels. These machines are designed to replicate the appearance and texture of natural stone while providing a more cost-effective.
Here are some key components and features commonly found in faux stone siding panels making machines:
1.Mold Preparation: The machine includes a mold preparation area where the molds for the stone siding panels are cleaned, coated with release agents, and prepared for casting.
2.Material Mixing: Faux stone siding panels are typically made from a mixture of cement, aggregates, pigments, and additives. The machine features a mixing system that blends these materials together to create a homogeneous and workable mixture. The mixing system can be a batch mixer or a continuous mixer, depending on the production requirements.
3.Panel Casting: The prepared molds are placed on a casting machine or a conveyor system that pours the mixture into the molds. The casting process replicates the desired stone texture and pattern on the surface of the panels. Vibration or other methods may be used to ensure proper compaction and the elimination of air bubbles.
4.Demolding: Once the panels have sufficiently cured, the molds are opened, and the solidified faux stone siding panels are removed. This process may involve an automated demolding system that ensures the panels are safely and efficiently released from the molds.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for paving tile molds, 3D wall molds, wall panel molds, roadside stone molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
- On-site technical support and maintenance
- Expert assistance with installation and setup
- Remote and telephone troubleshooting and support
- Periodic maintenance and inspection
- Repair and replacement parts
- Technical training and user manuals
- Upgrades and software updates
