Full Automatic Artificial Stone Wall Panel Production Line Wet Cast Line
Product Details:
| Place of Origin: | Henan,China |
| Brand Name: | HTX |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Normally carton box or following customer's requirements for Foam CLC Lightweighted Concrete Cement Injection For House Partition And Heat Preservation |
| Delivery Time: | 30Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Products Name: | Paving Artificial Stone Artificial Stone Production Line | Usage: | Construction |
|---|---|---|---|
| Auto Degree: | Fully Automatic | Stone Form: | Wall Brick |
| Feature: | High Efficiency Low Cost | Material: | Steel |
| Highlight: | 1000m2 Wall Panel Production Line,Clay Wall Panel Production Line,Cement Silo Stone Making Machine |
||
Product Description
Full Automatic Artificial Stone Wall Panel Production Line Wet Cast Line

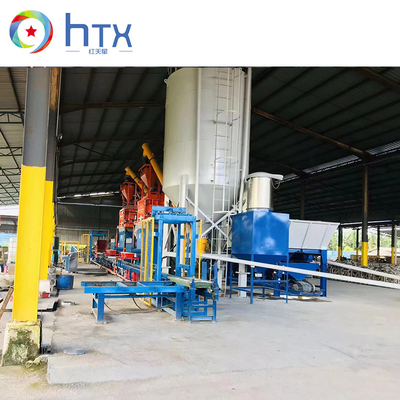

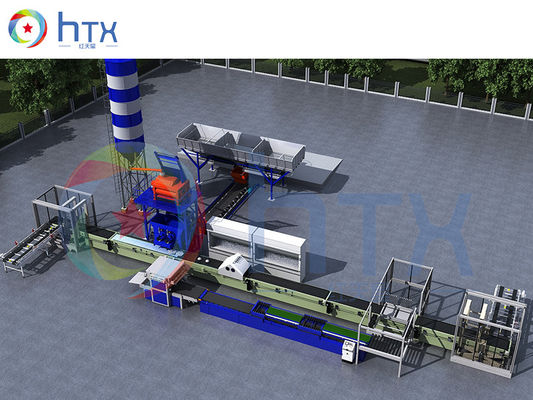

The full auto production line include cement silo, batching machine, and forced auto mixer. The cement silo need equipped with a screw feeder. To delivery cement into mixer. The batching machine have two or three hoppers. And have weighted function at bottom of each hopper. All the three machines need a PLC controller to control each function. Then come to dosing part, spraying part. The dosing part feed material by weight and time, and equipped with conveyor and vibration point. The spraying part can remove dust and spray demold oil or spray color. The dosing part also have touch screen PLC controller.Other parts are demold machine, unloading and loading machine, package machine, dust clearance machine, and so on. All the system can be customized according to clients requirements for cladding stone.

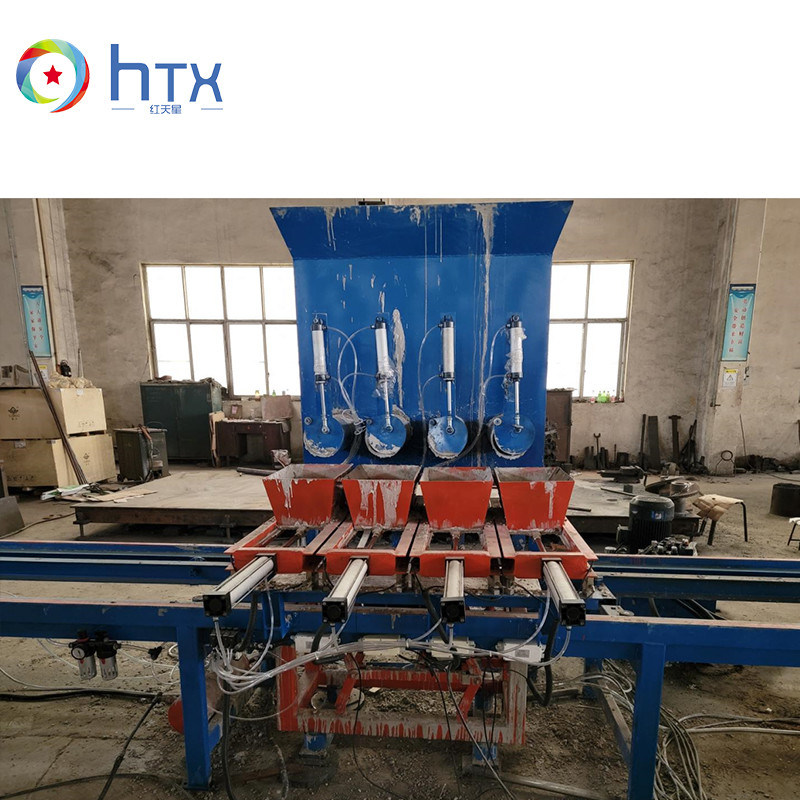

Concrete casting wet doser machine Product Details :More efficient production, can achieve 800M2 Per day (8hrs),Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.
Paremeter
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 800-1000 | 2000 |
| Artificial stone production line | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 600-800 | 1500 |
Finished Products
1) Q: Are you a factory or a trading company?
A: We are a foreign trade company integrating factories and trade. We have our own factories and overseas warehouses.
2) Q: What are the payment terms?
A: L/C, T/T, Western Union,RMB Cash.
3) Q: Do you offer formula solutions?
A: Yes,we can offer professional making solutions.You can make the color suitable for the floor tiles according to the proportion, and the color and gloss of the made tiles are better.
