Wet Precast Concrete Slab Dosing Machine Artificial Stone Production Line For Casting
Product Details:
| Place of Origin: | China |
| Brand Name: | HTX |
| Model Number: | HTX-P-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | 40000-200000/USD |
| Packaging Details: | Normally carton box or following customer's requirements for Cobblestone Paver Mold pave ways Path Maker Mold DIY Concrete Garden Slab Molds. |
| Delivery Time: | 30Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50Sets/Month |
|
Detail Information |
|||
| Product Name: | Road Edge Stone Casting Production Line | Feature: | Easy To Operate |
|---|---|---|---|
| Power: | 12.7 KW | Key Selling Points: | High Productivity |
| Size: | 7000*1000*1800mm | ||
| Highlight: | Wet Precast Concrete Dosing Machine,Concrete Slab Artificial Stone Production Line,Slab Precast Concrete Machine |
||
Product Description
Wet Pre Cast Concrete Dosing Machine Artificial Stone Production Line For Casting A Concrete Slab
Product Description

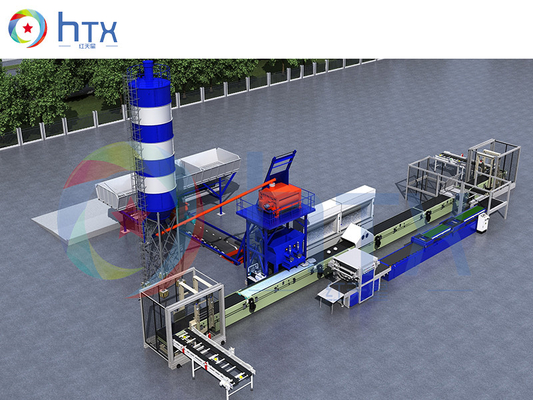

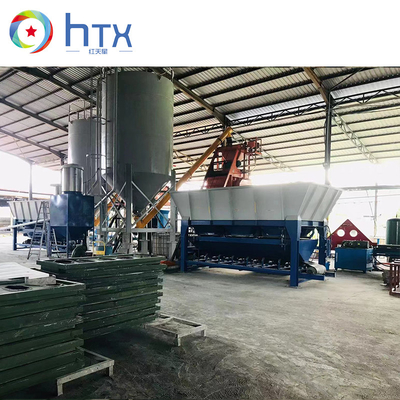

Cultured stone making feeding machine uses single-silo ingredients. Your cement can be directly transferred to the mold through the silo, and conveyed through the transmission belt to improve production efficiency. The daily production output is 500-600 square meters, which is completely impossible for manual production lines.The length of the entire production line is 8 meters, which can be expanded to 15 meters according to demand, requiring a workshop space of 300-400 square meters; it has the functions of timing cutting, timing vibration, and fixed-point transmission.Wet concrete dosing system, is suitable for different silicone molds, rubber molds and plastic molds, size range from 200*200mm to 1500*1500mm, available for producing the artificial stone both for wall and floor paving, 3D Wall panel, terrazzo floor tile, etc
This equipment is an upgraded version of the above blue equipment.
1. The feeding method is adjusted from horizontal unloading to bottom-up pumping and feeding. The feeding amount is more stable, and there will be no leakage or uneven feeding.
2. A weighing system is added, and there is a weighing device under the discharge opening, which can weigh 5-25kg of concrete, making the discharge volume more accurate.
3. A digital display PLC control system is added, which is easy to operate and more intelligent.
Specification:
| Name | Model | Specification |
Size (mm) |
Power (Kw) |
Capacity (m2/day) |
Weight (Kg) |
| Artificial stone production line | HTX-P-01 |
Hydraulic driving;Auto feeding; vibrating and timing feeding |
7000*1000*1800 | 12.7 | 800-1000 | 2000 |
| Artificial stone production line | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 600-800 | 1500 |
